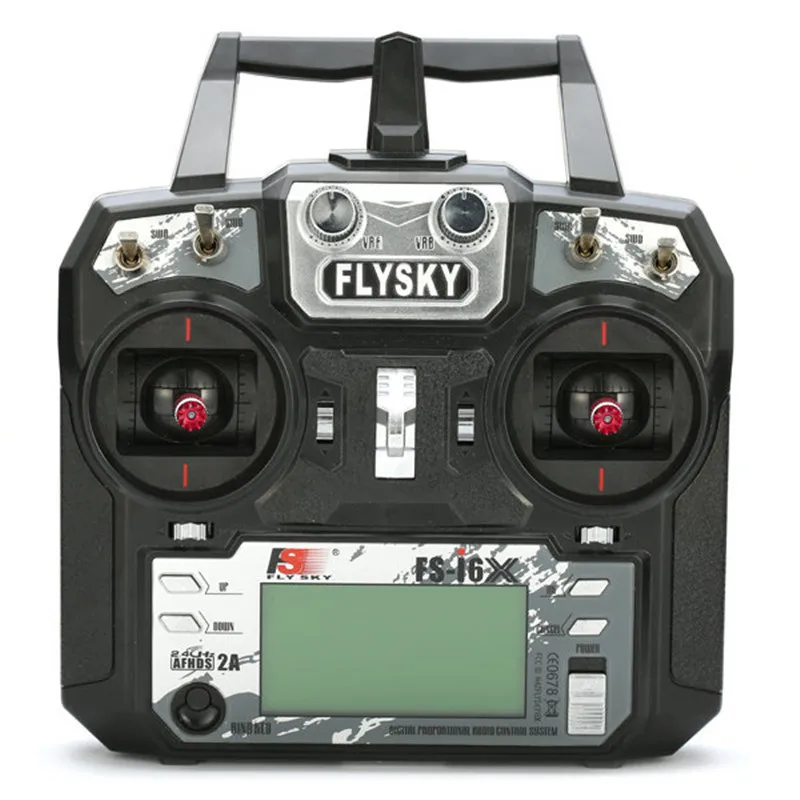

Flysky FS-i6X 2.4GHz 10CH AFHDS 2A RC Transmitter

(0.00)

৳6,500.00 ৳6,500.00

sold: 24 items

Stock:-1 Items In Stock

FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)

Model Type: Fixed-Wing/Glider/Helicopter

RF Range: 2.408-2.475GHz

RF Power: < 20dBm

RF Channel: 135

Bandwidth: 500KHz

2.4GHz System: AFHDS 2A / AFDHS

Modulation Type: GFSK

Stick Resolution 4096

Low Voltage Warning: < 4.2V

DSC port: PS/2 Port PPM

Chargeable: No

Antenna Length: 26mm (Dual Antenna)

Weight: 392g

Power: 6V DC 1.5AA*4

Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight

Size: 174x89x190mm

On-line Update: Yes

Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

X6B i-BUS Specifications:
Brand Name: Flysky
Item: X6B i-BUS Receiver

Channels: 6(PWM), 8(PPM), 18(i-BUS)

Model Type: Multi-Totor

RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135

RF Power: No more than 20 dBm

RX Sensitivity: -95dBm

2.4GHz protocol: AFHDS 2A

Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)

Power input: 4.0-8.4V

On-line Update: Yes(Wireless)
Range: >300m

Weight: 4.5g

Size: 36*22*7.5mm

i-BUS Port: Yes

Certificate: CE0678, FCC ID: N4ZX6B00

FS-iA6B Specifications:

Brand Name: Flysky
Item Name: FS-iA6B

Channel: 6

Frequency Range: 2.4055--2.475GHZ

Band Width Number: 140

Transmitting Power: ≤ 20dBm

RF Receiver Sensitivity: -105dbm

2.4G Mode: The second generation of an enhanced version of the automatic FM digital system

Encoding: GFSK

Antenna Length: 26mm * 2 (dual antenna)

Input Power: 4.0-6.5V DC

Dimension: 47 x 26.2 x 15mm

Weight: 14.9g

Color: Black

i-Bus Interface: Yes

Data Acquisition Interface: Yes

Model Type: Airplane / Glider / Helicopter

Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

FS-A8S Specifications:

Brand Name: Flysky

Item Name:FS-A8S Receiver

Channels: PPM 8CH, i-BUS 18CH

Model type: Multi-rotor

Frequency range: 2.408-2.475GHz

Band width: 500KHz

Band number: 135

RX Sensitivity: -92 dBm

2.4GHz system: AFHDS 2A

Modulation type: GFSK

DSC port: PPM/i-BUS/S.BUS

Transfer method: FHSS

Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS

Antenna length: 26mm (Not including brass contacts)

Input power supply: 4.0-8.4V

Display method: LED

No ground interference ( Transmitting and receiving 1 m from the ground): >300m

Working current: 40mA

Each channel data: depend on the transmitter

Channel delay: <15mS

Size: 20*14*5.3mm

Weight: 1.2g

Certificate: CE0678, FCCID: N45ZA8S00

Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

Features:

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.

Bidirectional Communication

Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.

Multi-channel Hopping Frequency

This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna

The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.

Unique ID Recgnition System

Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

Low Power Consumption

The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

FS-i6X Transmitter User Manual, Click Here
X6B i-BUS Receiver Manual, Click Here
A8S i-BUS Receiver Manual, Click Here

If you want to order the FS-i6X Transmitter with iA10B receiver, Click Here

Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter
1X Flysky X6B i-BUS Receiver
