2S 8A Li-ion 7.4v 8.4V 18650 BMS battery protection board

(0.00)

৳120.00 ৳120.00

sold: 35 items

Stock:95 Items In Stock

Model: HX-2S-D01
Overcharge voltage range: 4.25-4.35v ± 0.05v

Size: 41 * 16 * 3.5mm
Overpressure voltage range: 2.5-3.0v ± 0.05v

Upper working current: 8A
Operating temperature: -40 --- +50 ℃

Upper limit instantaneous current: 10A
Storage conditions: -40-- +80 ℃

Quiescent current: less than 10uA
Effective life: more than 50,000 hours

Internal resistance: less than 300mΩ
Short circuit protection: can be protected, need to charge recovery

Charging voltage: 8.4V-9V

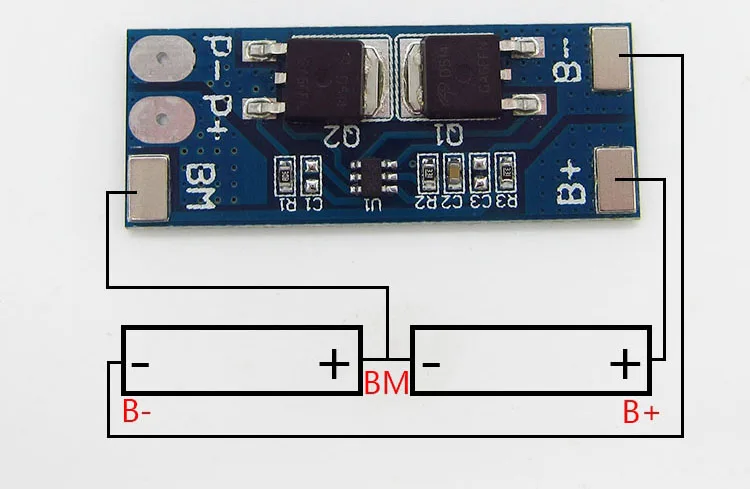

The protection board size and device description;

The protective plate size is 41 * 16 * 3.5mm

Welding point Description:

· B + connected to the battery positive;

· B-connected battery negative;

· MB connects the battery 1 to the connection point before the battery 2;

· P + connected to the charge / discharge side of the positive (charge side / discharge side shared);

· P-connection / discharge terminal negative (charge / discharge side common)
